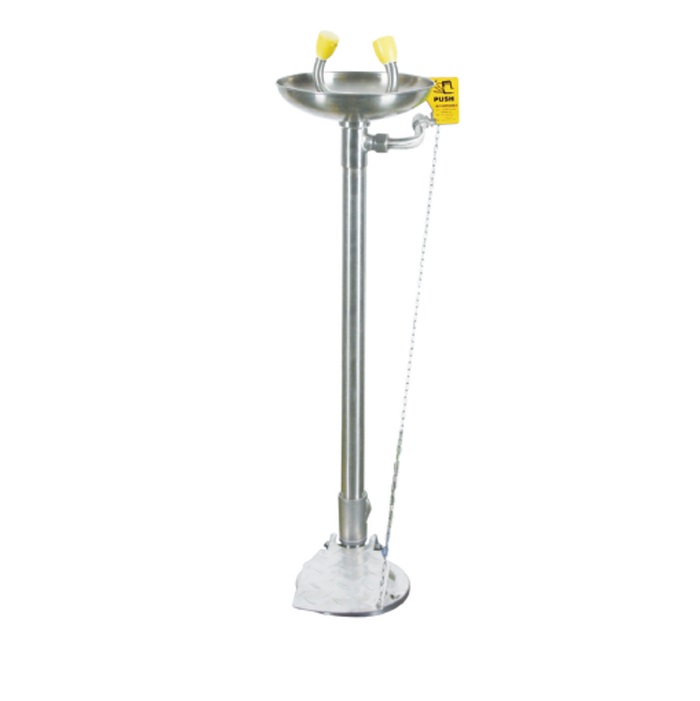

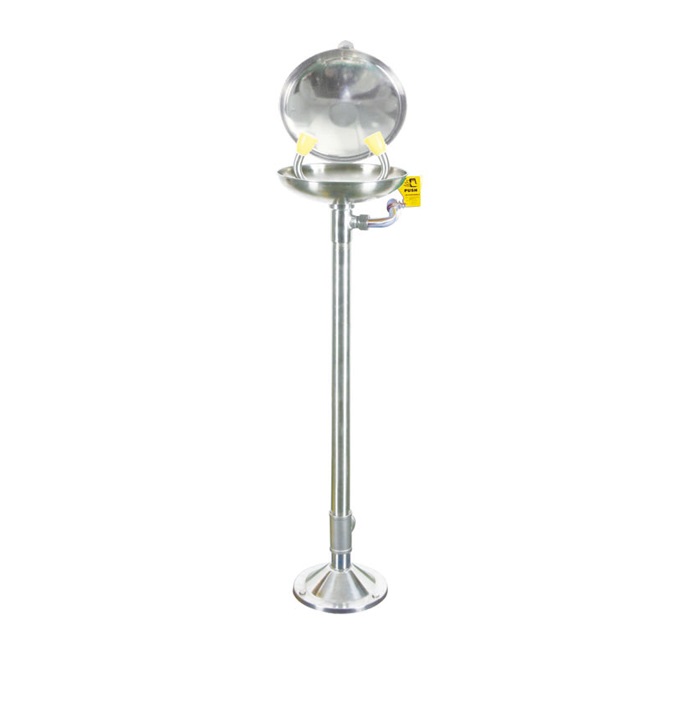

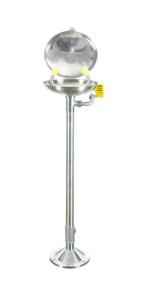

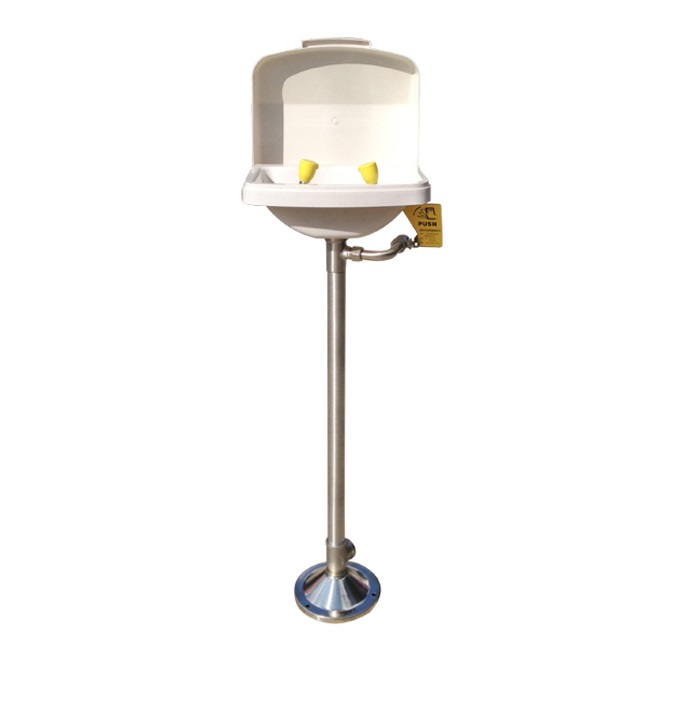

STAINLESS STELL Vertical emergency eye washer with dust cover EYE WASH STATION

Electric heat combined is designed specially for cold weather in the north, on the basis of the standard composite of eyewash increased insulation, alarm, explosion-proof, lighting and many other features, greatly improve practicality and safety.

Model: XYQ0016

Water inlet size: G1¼ inch thread

Water outlet size: G1¼ inch thread

Working pressure: 0.2Mpa-0.4Mpa

Media: room temperature water or stander water

The the shower nozzle flow: 75L-180L/ min ((water flow varies with the water pressure)

The eyewash nozzle flow: 7.5-18L/ min Spray head built-in double filters, filter impurities in water to make the water flow into the foamy water column, effectively prevent secondary damage to the eye and injured parts, nozzle is with dust cover outsize,which can be opened automatically as per water flow.

Insulation system: when the inlet water temperature is 0 degree below,eye washer system automatically turns on the heating function, effectively solve the problem,which eye washer can't work because of too low temperature.

Alarm system: when injured person use it, system will automatically trigger audible and visual alarm system to alert or notify the central control room (optional). Not only inform other people it was using, but also to achieve the purpose of the request for

relief, ensure that the injured get timely and effective treatment.

Explosion-proof system: according to customer needs with different levels of explosion-proof system. such as:ExdIIBT4/ BT6/ CT4/ CT6 etc(optional), protection

levers have IP53/56/65 etc.

In addition,can add lighting apparatus, luminous logo, pedals etc.

SHANGHAHI WINBAY TECH CO., LIMITED. is the professional in diving equipment ,eyewash station and emergency shower ,life saving products ,fire fighting equipments in China. Specialize in the development and promotion of diving suits,BCD, diving gears,snorkel mask ,fins, goggles ,diving cylinder, life jackets,life rafts, life buoy,fire hose , fire fighting pumps ,fire fighting suits ,fire alarm ,fire extinguisher ball etc.
